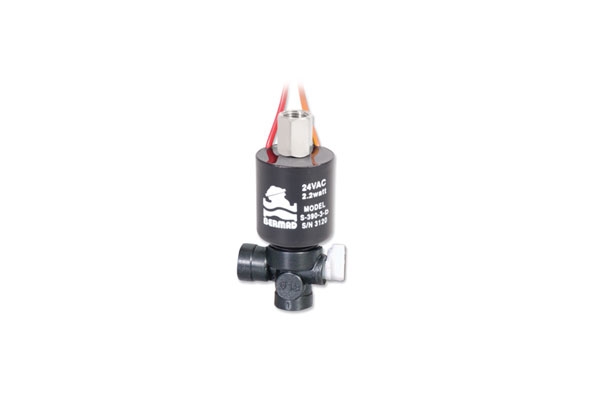

The BERMAD S-390-3W is a compact 3-Way Solenoid, specially designed for reliable long life service in irrigation systems controlled by Continuous Current Controllers. The BERMAD solenoid can control valves independently or in combination with other control circuit accessories. Model S-390-3W is compliant with all Continuous Current Controllers on the market. It is excels in its low power and low sensitivity to dirt and voltage variations. The hydraulic base features a manual override and consists of a bracket for attaching to the valve or to a solenoid manifold.
- No.1 Supplier
- Certified ISO 9001 : 2015
- Leading Service Provider
- +91-79-4800-2734
- sales@ycubeholdings.com
- Downloads
- PDF Brochures
3-Way Solenoid S-390-3W
Design Features
3-Way Solenoid S-390-3W Specifications
-Advanced Construction Materials, Unique Plastic Casing Proven pressure, voltage and weather resistance
-Highly durable in corrosive environments
-High mechanical strength
-Protection Class- IP68; NEMA Type 6D
