Adjustable Direct Acting Pressure Reducer

Design Features

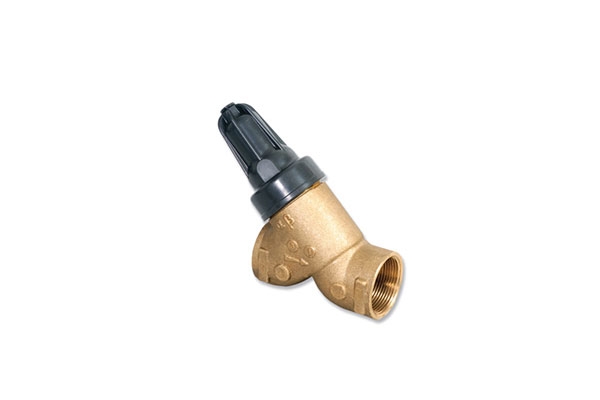

The BERMAD Adjustable Direct Acting Pressure Reducer is actuated by a pressure responsive diaphragm, which seeks to reach equilibrium between hydraulic and set spring force. The BERMAD Model 1½”-PRV brass body and reinforced plastic actuator assembly endow it with excellent hydraulic performance capabilities and particularly high mechanical strength. Supplied with a special throttling plug and elastomeric seal, it reduces higher upstream pressure to lower constant downstream pressure even under conditions of near zero demand, and seals drip-tight under no-flow conditions.

Adjustable Direct Acting Pressure Reducer Specifications

Metal Body and Advanced Construction Materials
  • Suitable for metal piping installations
  • Rigid construction, high stress resistance
  • Proven pressure, flow and weather resistance
Adjustable Direct Acting Pressure Reducer
  • Constant downstream pressure
  • Immediate response
  • Settable according to season and stage
  • Throttling Plug and Elastomeric Seal
  • Accurate and stable low-flow regulation
  • Drip-tight sealing under no-flow conditions
  • Unitized Rolling Diaphragm and Guided Plug
  • Smooth and repeatable operation
  • Prevents diaphragm distortion
User-Friendly Design
  • Can be installed at any orientation
  • Simple in-line inspection and service
