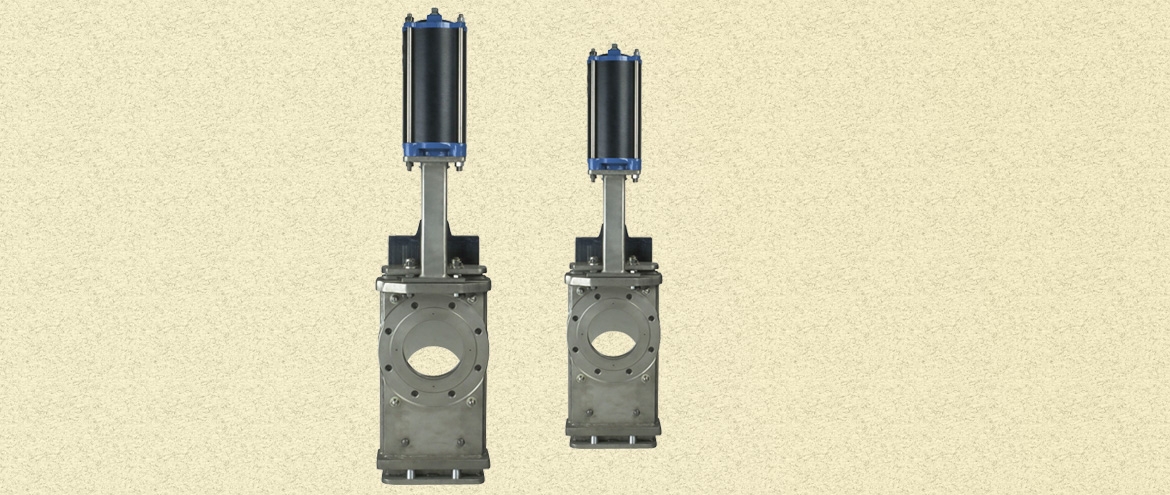

DeZURIK O-Port Knife Gate Valves (KGO)

Design Features

DeZURIK O-Port Knife Gate Valves are specially designed to handle high-density paper stock, wood chips, plastic pellets, cleaners, trash dump valves and refiner bypass isolation applications. Adjustable chest guides provide positive gate-to-seat support and eliminates stock build-up and gate jamming. Flush ports eliminate stock dewatering in the valve body. Full standard port diameter on the O-Port Knife Gate Valves eliminates turbulence and pressure loss. PTFE on hardened metal seat available for extra protection. O-Port Knife Gate Valves (KGO) Specifications

DeZURIK O-Port Knife Gate Valves (KGO) Specifications

SIZE RANGE: 3 - 36" (80 - 900mm)
42 - 72" (1100 - 1800mm) On Application
TEMPERATURE RANGE: to 500°F (260°C)
PRESSURE RATING: 100 psi (690 kPa) to 740 psi (5100 kPa) CWP
BODY MATERIAL: 316, 317 stainless steel and carbon steel
