Design Features
Design Features:

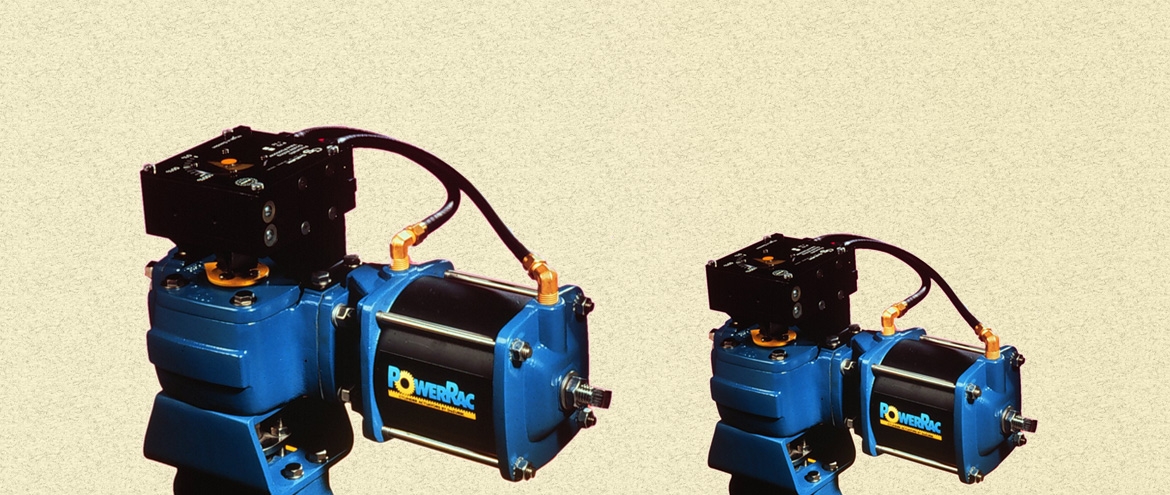

The rack-and-pinion design of PowerRac? Actuators provides high-operating torque for accurate control in modulating services, and high opening torque for on/off services. The unique square collet coupling rigidly clamps the drive pinion to the valve shaft, eliminating backlash in the drive connection. This rigid connection allows thrust from the cylinder to precisely position the valve. Positioners are solidly mounted on the actuator housing with a square nut, feeding exact valve position directly to the positioner. No lost motion assures accurate valve positioning. The modular design and compact size allow the actuator to be close coupled to the valve. Standard ISO bolt circle allows PowerRac? Actuators to be used on all DeZURIK quarter turn valves. Double-acting or fail-safe spring-return cylinder options are available.
PowerRac Cylinder Specifications
