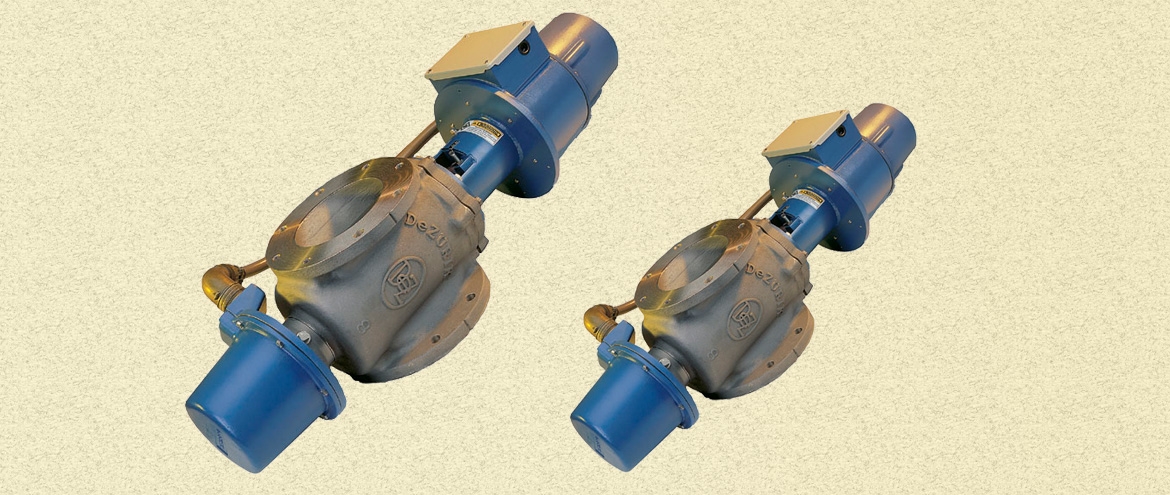

DeZURIK Precision Electric Control Valves (PPE)
Design Features
DeZURIK Precision Electric Control Valves are recognized industry wide as the most accurate and reliable basis weight control valve available. This high-resolution control valve is specifically designed for critical paper stock control, and is used for basis weight and headbox level control applications. Precision Electric Control Valves provide unmatched control accuracy, positioning and repeatability with up to 7,760 positions. Accepts analog signals. Features total electric operation with backlash that is essentially zero. Flange drilling is per ANSI standards.
Precision Electric Control Valves (PPE) Specifications
DeZURIK Precision Electric Control Valves (PPE) Specifications
| SIZE RANGE: | 4 - 20" (100 - 500mm) |
| TEMPERATURE RANGE: | 32°- 450°F (0°- 232°C) |
| PRESSURE RATING: | 275 psi (1890 kPa) CWP |
| SHUTOFF CLASS: | ANSI Class IV |
| BODY MATERIAL: | 316 Stainless Steel |
| ACTUATOR TYPE: | AC synchronous motor |
| FEEDBACK MECHANISMS: | Potentiometer and resolvers |
