Design Features

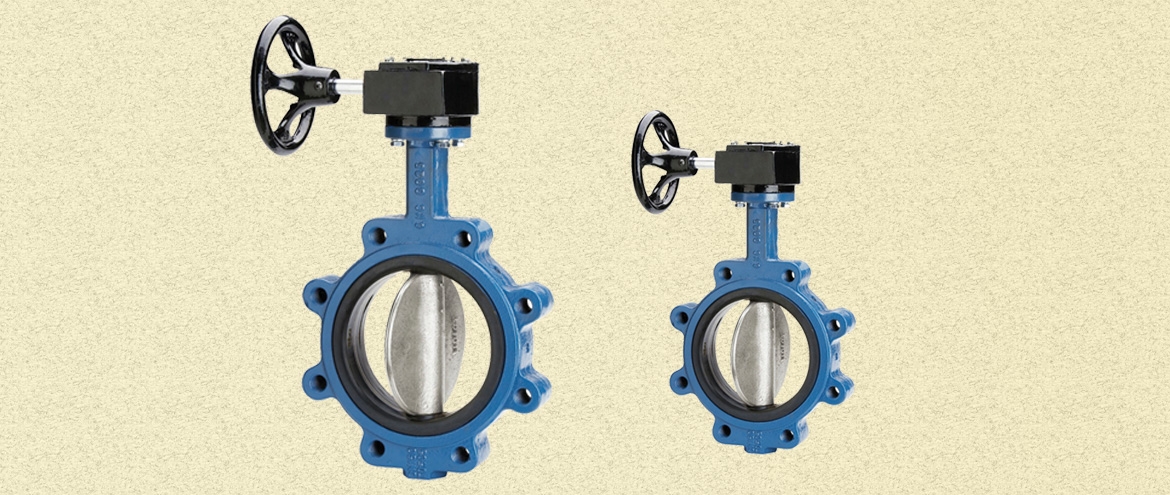

BOS-CL Resilient-Seated Butterfly Valves are designed to handle a wide variety of liquids and gases. BOS-CL valves are available in lugged or wafer bodies with Ductile Iron/Nickel Plated, 316 Stainless Steel or Aluminum Bronze discs. BOS-CL Resilient-Seated Butterfly Valves feature an on-center disc; one-piece body; solid, one-piece shaft and a high-performance resilient seat bonded to a solid backing ring. Resilient On Center Seated Butterfly Valves (BOS-CL) Specifications

DeZURIK Resilient On Center Seated Butterfly Valves (BOS-CL) Specifications

SIZE RANGE:	1-1/2-24" (40-600mm)
TEMPERATURE RANGE:	to 350°F (176°C)
PRESSURE RATING:	200 psi (1379 kPa) for sizes 1-1/2-12" 150 psi (1034 kPa) for sizes 14-24"
VALVE STYLE:	Flanged and mechanical joint
BODY MATERIAL:	Cast iron, ductile iron
ACTUATOR TYPE:	Lever, hand wheel, chain wheel, square nut, cylinder, electric motor
SPECIAL CONSTRUCTION:	Square and rectangular AWWA butterfly valves are designed in a variety of sizes for square/rectangular configurations. Specially designed packages for Pump Check control applications are also available.
