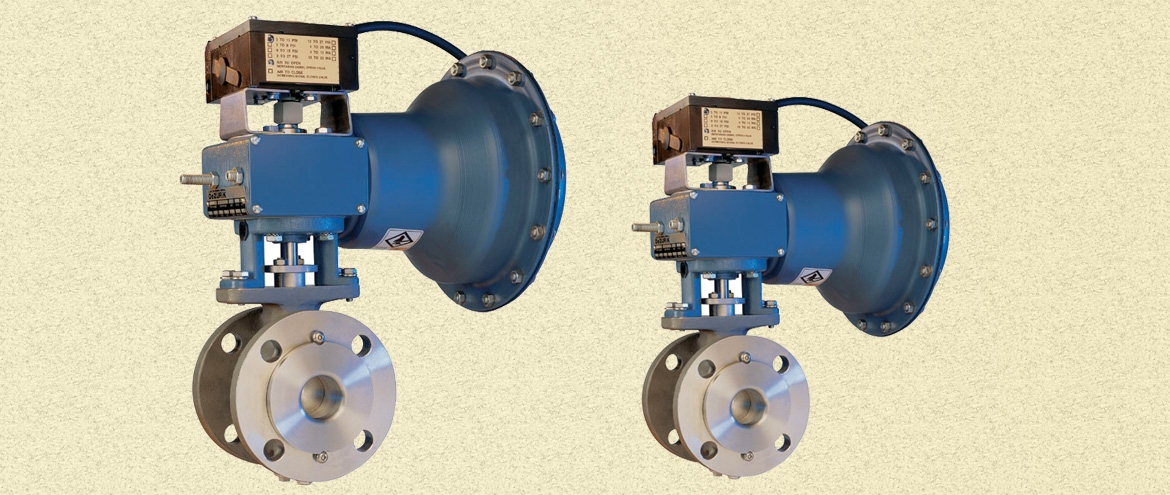

DeZURIK Rotary Control Valves (RCV)
Design Features
DeZURIK Rotary Control Valves are eccentric valves for throttling liquids, gases and slurries. They combine precise throttling accuracy and control over a full 90? of rotation. Rotary Control Valves are designed for bi-directional flow capability and include four trim options for flexibility. Designed for ease of maintenance with no internal threaded components and self-aligning seat and plug. Flanged or flangeless designs to meet ANSI or ISA face-to-face dimensions. Tungsten carbide coated trim components and design features provide superior erosion resistance.
Rotary Control Valves (RCV) Specifications
DeZURIK Rotary Control Valves (RCV) Specifications
| SIZE RANGE: | 1 - 12" (25 - 300mm) |
| TEMPERATURE RANGE: | to 1000°F (540°C)ANSI Class Rating: 150, 300 |
| PRESSURE RATING: | 285 - 740 psi (1965 - 5100 kPa) ANSI B16.104 |
| SHUTOFF CLASS: | ANSI Class IV |
| BODY MATERIAL: | 316 and 317 stainless steel, carbon steel, Hastelloy C, Titanium |
| TRIM SIZES: | High, Full, .5 Reduced, .2 Reduced |
