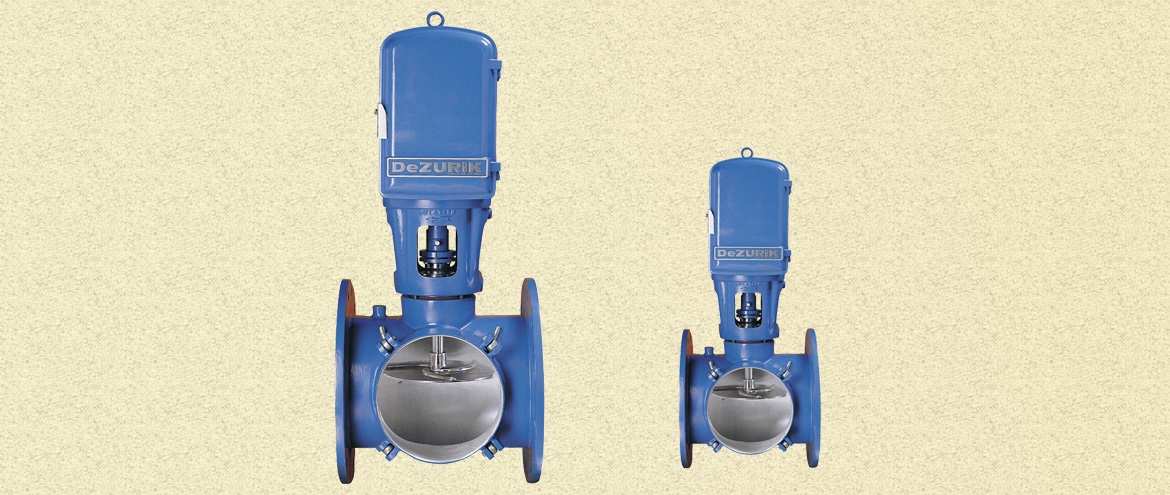

DeZURIK Rotating Consistency Transmitters

Home
Brands
Dezurik Valves
Special Valves
DeZURIK Rotating Consistency Transmitters

Design Features

Design Features:

Consistency range from 0.75% to 10% at velocities from 0.1 to 10 feet (.03 to 3 meters) per second. Motor-driven sensor located in pulp stock flow is highly sensitive to consistency changes and insensitive to flow changes. Capable of measuring ? .0025% or larger.

Rotating Consistency Transmitters (SDP) Specifications

DeZURIK Rotating Consistency Transmitters Specifications

CHAMBER SIZE:	12 - 36" (300 - 900mm)
CHAMBER PRESSURE RATING:	125 psi (860 kPa)
CHAMBER MATERIAL:	304, 316 or 317L stainless
SHAFT, SENSOR MATERIAL:	316 or 317L stainless steel
CHAMBER STYLE:	Horizontal, vertical, open, pan
ABRASIVE SERVICE:	Optional abrasion and corrosion resistant designs with hard facing available in Stellite, Tungsten Carbide, Pulse Fusion.
OUTPUT:	Pneumatic, electronic
