Flameproof Wire Rope Electric Hoists are generally used in oil & gas industries, chemical industries or in hazardous areas where explosion is possible due to mechanical/electrical sparking; for gas groups IIA/IIB & IIC.To avoid the explosion, electrical components are used with flameproof enclosures to defuse the sparking. These enclosures are certified by CMRS/PESO.In case of gas group IIC area, cladded wheels are used to avoid mechanical sparking due to friction.Festoon type of trailing cable system is used for electrical supply to avoid electrical sparking. Double compressed flameproof cable glands are used in SMACO Flameproof Hoists.
- No.1 Supplier
- Certified ISO 9001 : 2015
- Leading Service Provider
- +91-79-4941-0313
- sales@ycubeholdings.com
- Downloads
- PDF Brochures

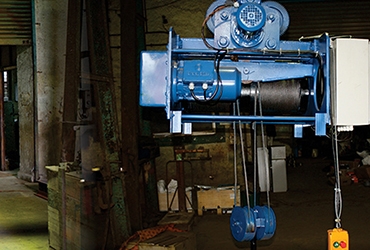

Electric Wire Rope Hoist
Design Features
Electric Wire Rope Hoist Specifications
| Specification: |
| Bearings Life: 9000 hrs |
| Capacity Range:0.5 MT - 20 MT. |
| Hoist Type : Power Operated. |
| Features: |
| Design: SMACO Hoists are designed as per IS : 3938 for Class- II & Class III duty operations. |
| Rope Drum : Rope drum is manufactured from seamless pipe machined and grooved onworking surface. The drum is supported on two deep groove ball/roller bearings. |
| Bearings : Ball/Roller- Anti-friction Bearing of reputed make i. e. SKF/FAG or equivalent areused, rated life of bearings is not less than 9000 hrs |
| Flame-Proof Hoists : |
| Flame - Proof Hoists upto 15 TON capacity for Gas group IIA, IIB &IIC are manufactured by us in accordance with IS standards. For such equipments we are approved by P.D.O -Oman. |
| Variable voltage and variable frequency drives are also fitted in the HOISTS on request. |
