Flow Control Hydrometer

Design Features

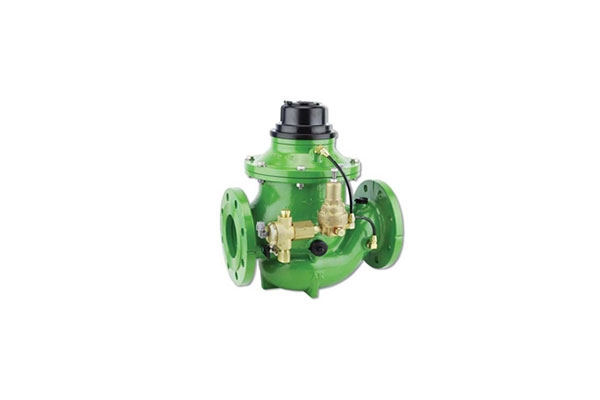

The BERMAD Model IR-970-M0-55-RV integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. As the system’s Flow Meter and Main Valve, it controls system irrigation together with the irrigation controller. The BERMAD Hydrometer limits the flow to a constant preset maximum. It either opens or shuts in response to an electric signal.

Flow Control Hydrometer Specifications

  • Integrated “All-in-One” Control Valve
 -Saves space, cost and maintenance
  • Line Pressure Driven, Electrically Controlled On/Off
 -Limits fill-up rate and consumer over-demand
  • Magnetic Drive with Vacuum-Sealed Register

-Water-free gear train mechanism

-Reed-switch and Opto pulse-generating modes

-Various pulse combinations
  • Internal Inlet & Outlet Flow Straighteners

-Saves on straightening distances

-Maintains accuracy
  • Integrated Flow Metering Calibration Device.
  • Paddle-Type Hydro-Mechanic Flow Pilot

-No added head loss

-Wide setting range
