Level Control Valve

Design Features

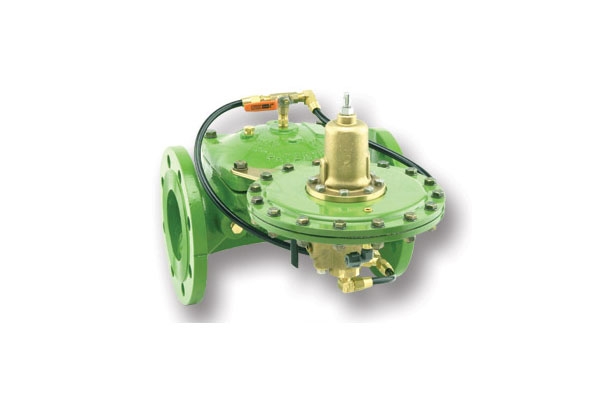

The BERMAD Model IR-450-80-XZ Level Control Valve with Altitude Pilot is a hydraulically operated, diaphragm actuated control valve. The valve hydraulically shuts at preset reservoir high level and fully opens in response to an approximately one-meter (three-foot) level drop, as sensed by the 3-way altitude pilot mounted on the main valve.

Level Control Valve Specifications

  • Line Pressure Driven, Hydraulically Controlled.
  • Bi-Level Altitude Pilot

  • -No float, simple installation
    -On/Off service
    -No cavitation damage
    -Suitable for low quality water
  • Advanced Globe Hydro-Efficient Design

-Unobstructed flow path
-Single moving part
-High flow capacity
  • Fully Supported & Balanced Diaphragm

-Requires low opening and actuation pressure
-Progressively restrains valve closing
-Prevents diaphragm distortion
  • User Friendly Design

-Easy level setting
-Simple in-line inspection and service
