Level Control Valve

Design Features

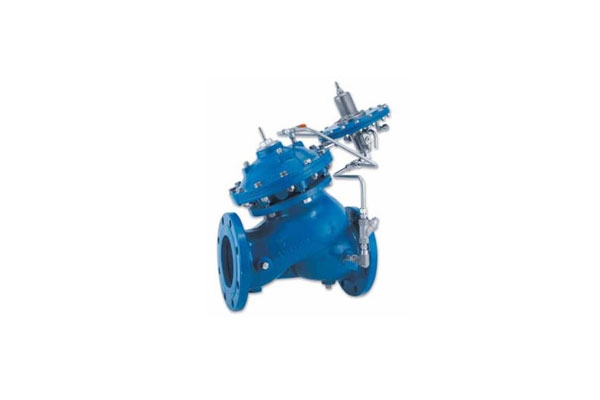

The Model 750-80-X Level Control Valve is a hydraulically controlled, diaphragm actuated control valve that shuts off at pre-set reservoir high level and fully opens in response to an approximately one meter (three foot) level drop, as sensed by the 3-Way altitude pilot mounted on the main valve.

Level Control Valve Specifications

  • Line pressure driven – Independent operation
  • Bi-level altitude pilot
  • -No float, simple installation
  • -On/Off service
  • -No cavitation damage
  • -Suitable for low quality water
  • -Reservoir inherent refreshing
  • Double chamber design
  • -Moderated valve reaction
  • -Protected diaphragm
  • External installation
  • -Easy access to valve
  • -Easy level setting
  • -Less wear and tear
