This pilot integrates all principal functions of a 2-way control circuit in a single assembly. It is a direct acting pilot valve, actuated by a pressure responsive diaphragm, which seeks to reach equilibrium between hydraulic and set spring forces. When used in a pressure reducing circuit, the pilot modulates closed as downstream pressure rises above set point. An internal restriction acts as an upstream flow restrictor.
- No.1 Supplier
- Certified ISO 9001 : 2015
- Leading Service Provider
- +91-79-4800-2734
- sales@ycubeholdings.com
- Downloads
- PDF Brochures

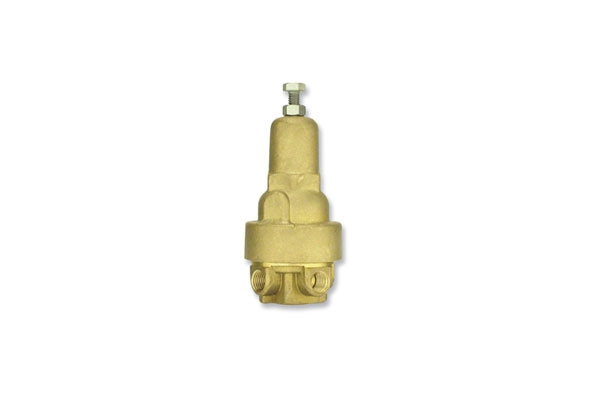

Metal Model PC-20-M
Design Features
Metal Model PC-20-M Specifications
-
- -Internal or external upstream flow restrictor
-
- -Internal or external pressure sensing
-
- -Differential pressure sensing
-
- -Direct pressure gauge installation
