This pilot integrates all principal functions of a 2-Way control circuit in a single assembly. It is a direct acting valve, actuated by a pressure responsive diaphragm, which tends to reach equilibrium with the set spring force. When used in a pressure relief/sustaining circuit, the pilot modulates open as upstream pressure rises above set point. An integral needle valve acts as an upstream flow restrictor as well as a closing speed control.
- No.1 Supplier
- Certified ISO 9001 : 2015
- Leading Service Provider
- +91-79-4800-2734
- sales@ycubeholdings.com
- Downloads
- PDF Brochures

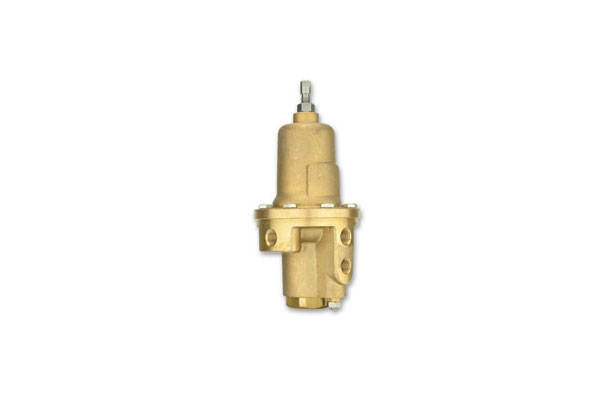

Pressure Sustaining Pilot Valve Model #3
Design Features
Pressure Sustaining Pilot Valve Model #3 Specifications
- Integral needle valve
- Internal or external pressure sensing
- Differential pressure sensing
- Direct pressure gauge installation
