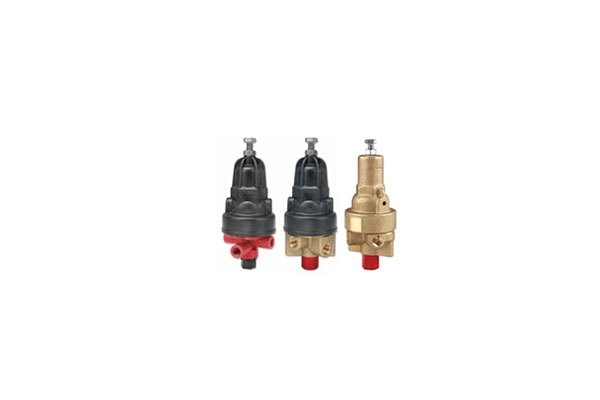

SHARP 3-Way Mini-Pilot

Home
Brands
Pilots & Accessories
Mini Pilots
SHARP 3-Way Mini-Pilot

Design Features

SHARP is the most sensitive and accurate mini-pilot in the market. It is a multi-purpose 3-Way mini-pilot, diaphragm-operated, based on a balance between the hydraulic force acting on the diaphragm, and the mechanical force of the calibration spring. The SHARP replaces the PC-X mini-pilot through all applications range.

SHARP 3-Way Mini-Pilot Specifications

-Universal Mini-Pilot: Serves as a pressure reducing pilot, pressure sustaining pilot, flow control Pilot [PC-XD] & hydraulic relay

-Easy fit-in: Connections are identical to PC-X & Servo (PC-S)mini-pilots, allowing easy & simple on-site upgrade

-High Quality: All calibration springs made of Stainless Steel
-Accurate & Flexible: Pressure setting range: 0.5-10bar; 8-145psi. Tolerance: < 2m; 3psi
