Speciality Gate Valves

Design Features

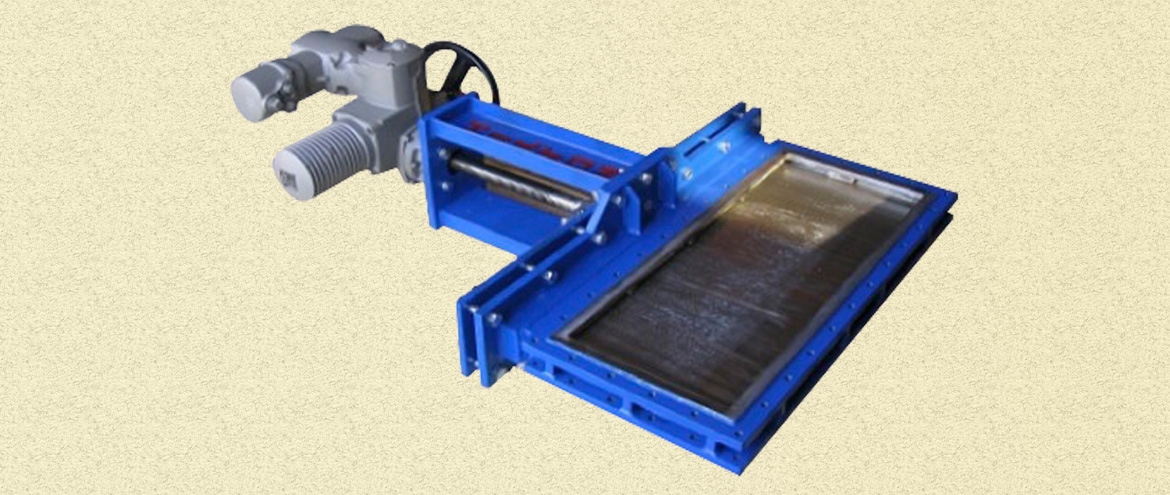

Fabricated Square and Rectangular port knife gates are custom manufactured for each specific application. Available with resilient seat for tight shut-off and with bonneted, or bonnet less configurations. Square / Rectangular Port Knife Gate Valves (H-200-R) Specifications

Speciality Gate Valves Specifications

SIZE RANGE: Through 72"
TEMPERATURE RANGE: up to 1200°F
PRESSURE RATING: up to 300 psi
SEATING: Metal or Resilient
MATERIALS: Valves are available in solid or wetted parts construction in any weldable alloy, including Stainless Steel, Hastelloy, Inconel, Monel and Titanium.
ABRASIVE SERVICE: Optional abrasion and corrosion resistant designs with hard facing available in Stellite, Tungsten Carbide, Pulse Fusion.
VALVE STYLE: H-200-R, Bonnetless Valve
