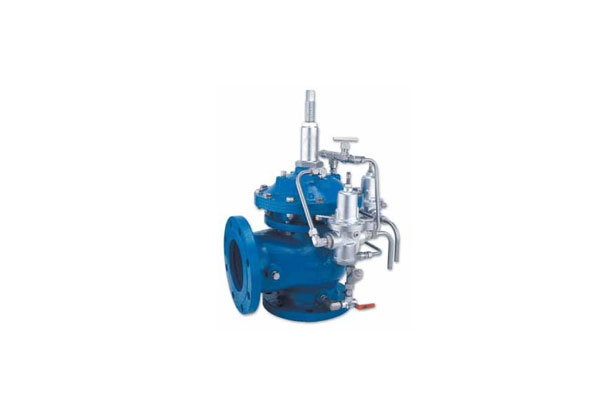

Surge Anticipating Control Valve

Design Features

The Model 735-M Surge Anticipating Valve is an off-line, hydraulically operated, diaphragm actuated valve. The valve, sensing line pressure, opens in response to the pressure drop associated with abrupt pump stoppage. The pre-opened valve dissipates the returning high pressure wave, eliminating the surge. The Model 735-M smoothly closes drip tight as quickly as the relief feature allows, while preventing closing surge. The valve also relieves excessive system pressure.

Surge Anticipating Control Valve Specifications

Replaces surge air vessels	-Relieves surge, fail-safe open -Minimal maintenance -Economy of space -Lower investment & maintenance costs -Especially economic for higher pressure ratings
Line pressure driven	-Independent operation -No motor required -Long term drip tight sealing -Adjustable hydraulic actuation
Double chamber	-Moderated valve closing (no surges) -Protected diaphragm
